Your present position：Home>Products show>Acrylic Sheet

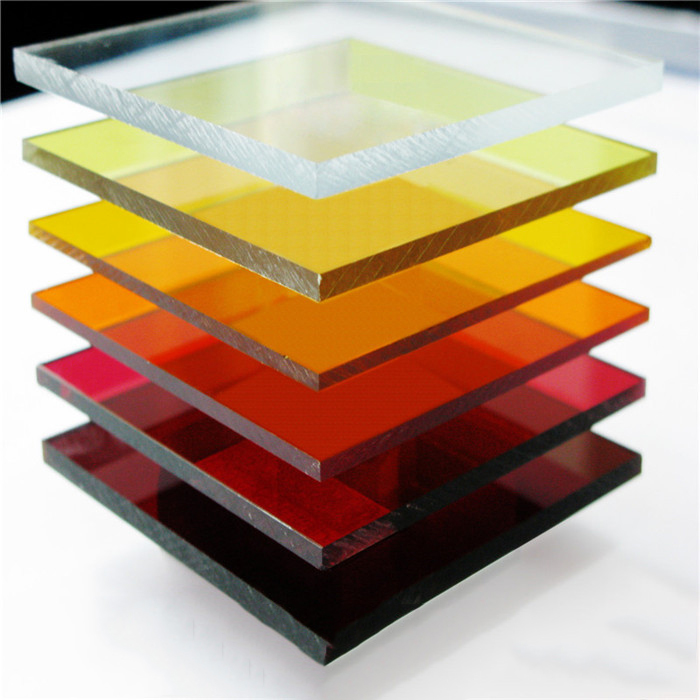

Acrylic Sheet is known as PMMA and Plexiglass Sheet.

With its excellent features of transparency, high impact strength, weather resistance, the product is used in advertising, construction and industry.

Advantages:

1.Excellent transparency.

2.Good mechanical performance.

3.Good electrical insulation.

4.Stable and durable.

5.Nontoxic.

6.Superior impact resistance..

7.Crack resistance.

8.Superior weather resistance.

9.UV resistance.

10.Chemical resistance.

11.Stable color under outdoor exposure.

Acrylic average Physical properties

Items	Result	Items	Resul
Specific gravity	1.19-1.20g/cm³	Transmittancy(parallel rays)	92%
Hardness	M-100	Fullrays	93%
Absorptivity of water(24hr)	0.30%	Heat distortion temperature	100℃
Tension coefficient of rupture	700kg/cm²	Coefficient of linear expansion	6x10^-6cm/cm℃
Tension coefficient of elasticity	28000kg/cm²	Ultimate temperature of continuous operation	80℃
Bending coefficient of rupture	1.5kg/cm²	Therm of oring ranges	140-180℃
Bending coefficient of elasticity	28000kg/cm²	Insulating strength	20v/mm

Features of Acrylic constrasting with other materials

Materails	Elasticity(kg/cm)	Heat deformation temperature (℃)	Transparence(%)	Hardness(M)
PMMA	900-1300	74-103	93-95	85-105
PS	560-980	65-104	89	65-80
AS	980-1300	88-104	87	80-90
PC	950	130-141	87	75-85
PVC	700-1120	66-77	84

Applications:

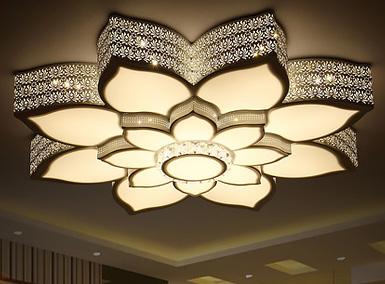

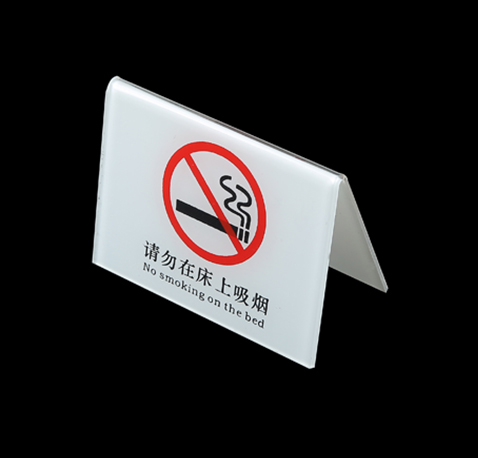

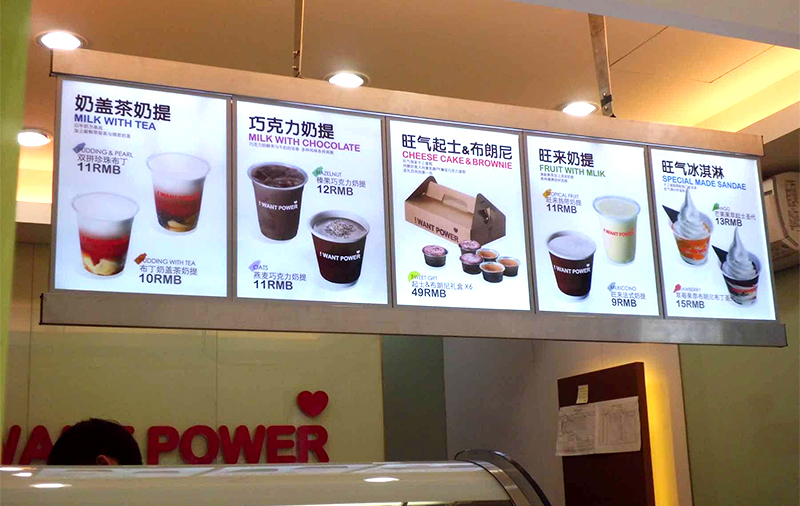

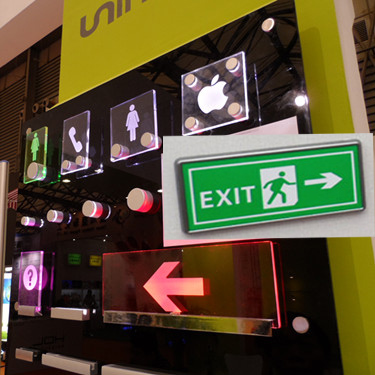

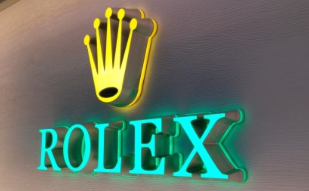

1.Advertising:Light boxes, signage board, display, etc.

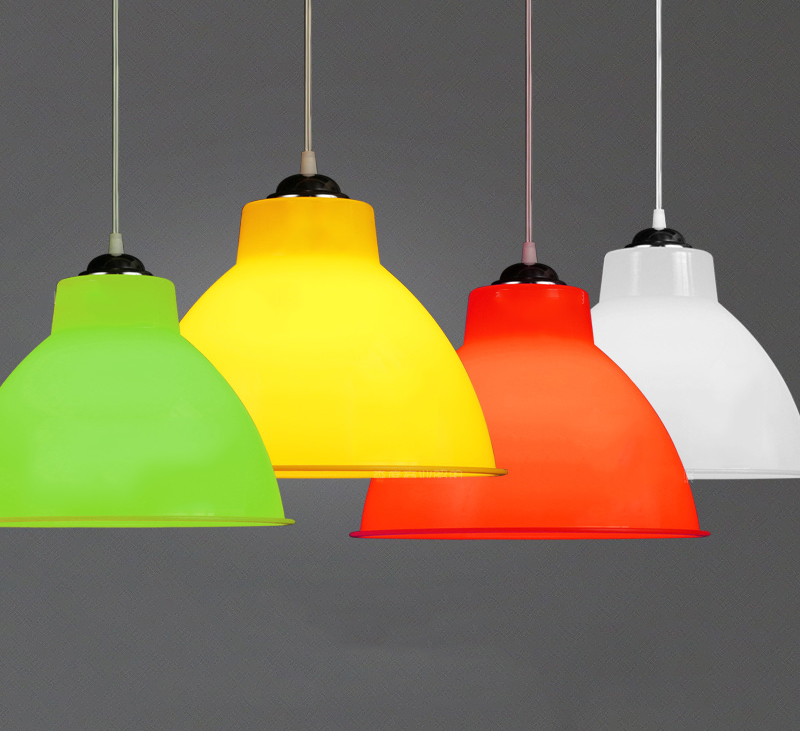

2. Construction: windows, soundproof Windows, light shade, telephone booth, etc

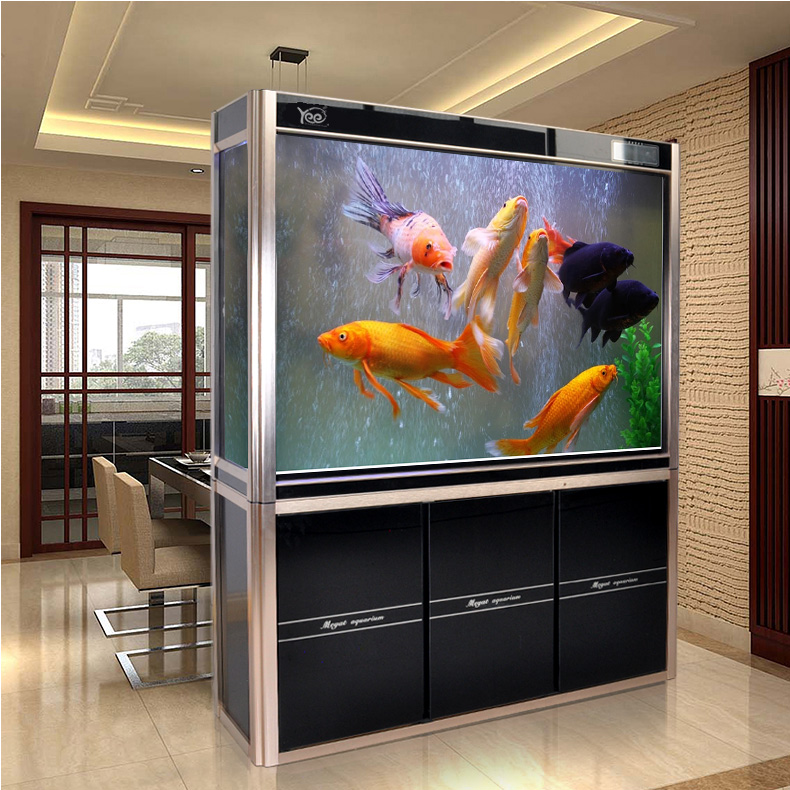

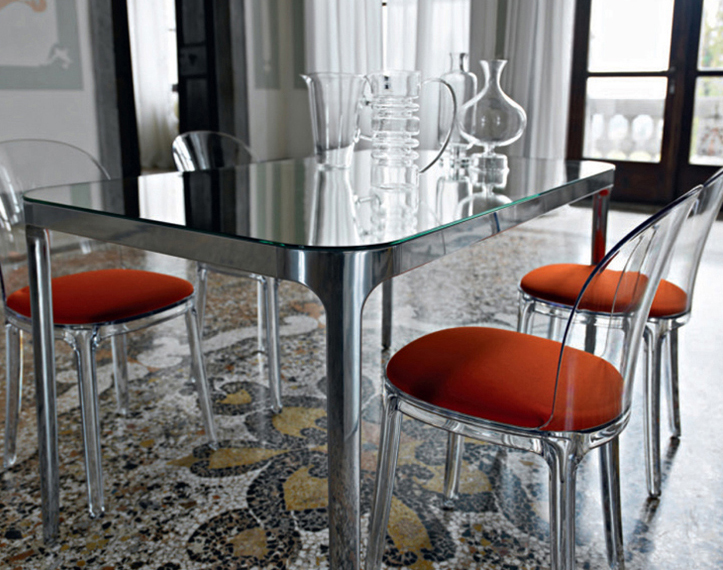

3. Industry: manufacture of furniture, equipment, cars and trains, bath facilities, fish tank,telephone booth, etc.

Processing advises :

Fabricating: sawing, drilling, milling

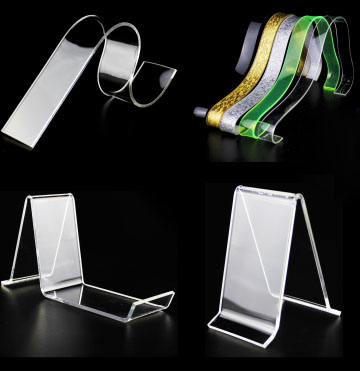

Thermal processing: bending, thermoforming

Others: screen printing, digital printing, vinyl labeling, laminating, painting

Specifications:

Thickness	2mm - 50mm
Size	1020x1520mm, 1050x2050mm, 1250x1850mm, 1250x2450mm,1550x2550mm,1550x3050, 2050x3050mm, etc.
Surface	glossy-glossy, glossy-matt

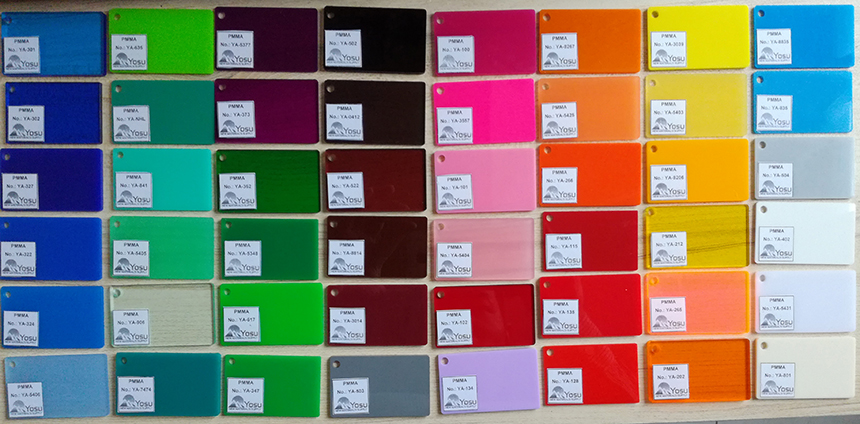

Color	clear, white, red, black, orange, yellow, opal white, translucent, etc.
Others	PE or craft paper protective film on both surfaces

Notice for Acrylic:

Temperature: Acrylic will soften on heating to 100℃ or above, so it should be avoided to be used above 100℃. (The Ultimate temperature of continuous operation is 80℃)

Defect: Since acrylic surface hardness is similar to aluminum, so the surface protection should be noticed. If defect occurred, it should be treated with the abradant that used for yellow aluminum to polish.

Scratching: Since electrostatic will occur by dry cloth, if there is dust on surface, it should be washed lightly by 1% soap water by soft cloth.

Heat Expansion: the index for heat expansion of acrylic is large and its extensibility is several times than that of metal, therefore it should be considered when install.
